Description
Introduction
The FastMarker F series consists of advanced manually loaded laser marking workstations for the precise and economic processing of small, large and geometrically complex workpieces as well as small and large batches of parts. Among others, Once the files have been transmitted to the control unit, your marking laser can operate on its own, or be controlled by a PLC.
The station fiber laser marker is equipped with electronic Z-axis, work table, electric lift door; ideal for almost any direct part marking application, including automotive, aerospace, medical, tools, metal, plastic processing and mechanical engineering industries.
• A comprehensive range of protection devices for maximum safety.
• Use high-quality laser source and high-speed digital galvo head.
• high laser repetition frequency.
• Performance has reached the international advance level.
• Non-contact processing, no damage to the product.
• No tool wear, good marking quality.
• Open mold die-casting to manufacture lifting frame, built-in linear guide rail, stable structure and concise design.
• Powerful and stable control system, can be optimized for various data according to different processes.
• Easy to cooperate with automation system.
Supply (Depends on workspace and laser system)
Power Consumption: Depends on integrated laser system above listed fiber lasers: 400 VAC
Electrical Requirements ：L / N / PE 100 – 240 VAC, 50 / 60 Hz
Temperature： 50 – 104ºF | 10 – 40ºC
Humidity： 5 – 85 %, non-condensing
Dimensions
Footprint：1023 in² | 0.66 m²
(L × W × H) : 25.59in×27.56in×57.09in | 650mm×700mm×1450mm
IP Rating: Housing IP43, Supply unit IP21
Laser Class: Laser class 1 (according to DIN EN 60825-1)
Workstation
Work Space: 11.02 ×10.23 in | 280 × 260 mm
Max. Work Piece Weight： up to 55 lbs | 25 kg
Max. Work Piece Size：11.02 × 10.23 × 18.50 in | 280 × 260 × 470 mm (L× W × H)
User interfaces
- Laser marking software MacMark (on separate, internal)
- Operation via a monitor with keyboard and mouse/touch screen monitor
- USB interface
Axes programmable z-axis
Travel：12.79 in | 325 mm
Travel Speed： up to 0.24 in / s | 6 mm / s
Scope of delivery
Integrated Z-axis
Configurable laser system
Laser marking software MacMark
Lifting door
Manual opening
Max. doorway 11.89 in (302 mm)
Advantage
Design
Independent design patent industrial-grade workstation with automatic Z axis and safety cover.
Safety
Fully equipped Germany Siemens electrical system, machine complies with EU safety regulations (performance level D)
Flexibility
Integration into customer processes (interfaces, additional axes), Various laser systems available, Accessories and options for optimal customization.
Ergonomics
Wide and easily opening door for comfortable loading/unloading components, small footprint, air-cooled laser source, optional mobile, height adjustable worktable and rotary clamps.
Performance
Equipped with high-quality fiber lasers with strong beam quality and high-efficiency galvo head with dual red light positioning system, fast focus and precise positioning, improve accuracy and speed at work.
Reliability
Using built-in DSP chip set, equipped with industrial embedded operating system, running MacMark laser marking software, while ensuring superior performance, the equipment is more stable and reliable.
Options / Accessories

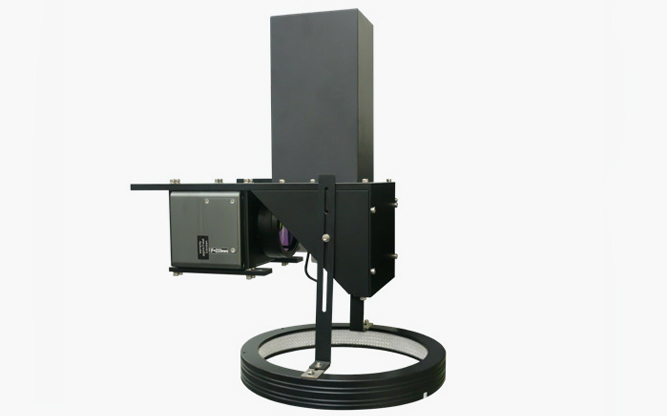

CCD laser system

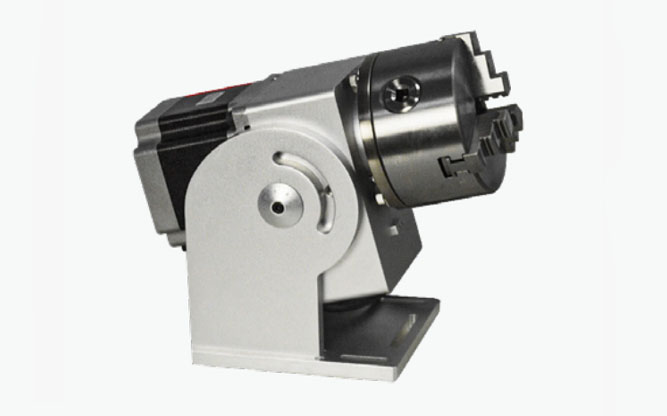

Rotary device

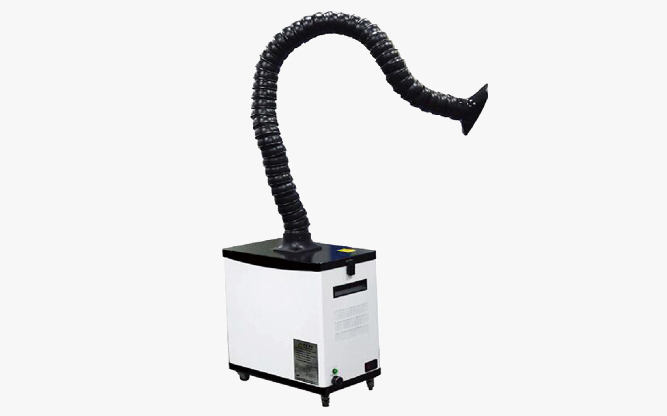

Exhaust system
Accuracy package
Applicable Material
Suitable to all kinds of metal and partial nonmetallic material, High hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.
Applicable Industry
Widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools,sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.
Sample Display
| Mold | FASTMARKER F2100 |
FASTMARKER F3100 |
FASTMARKER F5100 |
FASTMARKER F7100 |
FASTMARKER F10100 |
| Laser Type | Fiber | ||||
| Laser Power | 20W | 30W | 50W | 70W | 100W |
| Wavelength | 1064nm | ||||
| Dimensions (L × W × H) | 650 mm (25.59 in) × 700 mm (27.56 in) × 1450 mm (57.09 in) | ||||
| Frequency | Up to 10 – 80 Khz | ||||
| Marking Speed | Up to 10000 mm / s (393,7 in / s) | ||||
| Z Axis Type | Motorized | ||||
| Operating Temperature | 10-40ºC | ||||
| Marking Area – Available Lenses | F160: 110 mm (4.33 in) × 110 mm (4.33 in) Optional: F100: 70 mm (2.75 in) ×70 mm (2.75 in) F254: 175 mm (6.89 in) × 175 mm (6.89 in) F330: 200 mm (7.87 in) × 200 mm (7.87 in) F420: 300 mm (11.81 in) × 300 mm (11.81 in) |
||||
| Z Axis Travel | 325mm (12.79 in) | ||||
| Door Type | Manual | ||||
| Communication Interfaces | 4 x USB; Terminal Block 2I / 3O; (Standard) Laser Safety Dedicated I / O; RS232; Ethernet TCP / IP |
||||
| Laser Safety Classification | Class 1 Door Closed / Class 2M Door Open (Aiming Diode) | ||||
| Power Consumption Rate | < 800W | ||||
| Machine Net Weight | 100Kg (220.46 lbs) | ||||
| Software | MacMark | ||||
| Rated Voltage | 100 – 240 VAC, 50/60 Hz | ||||
