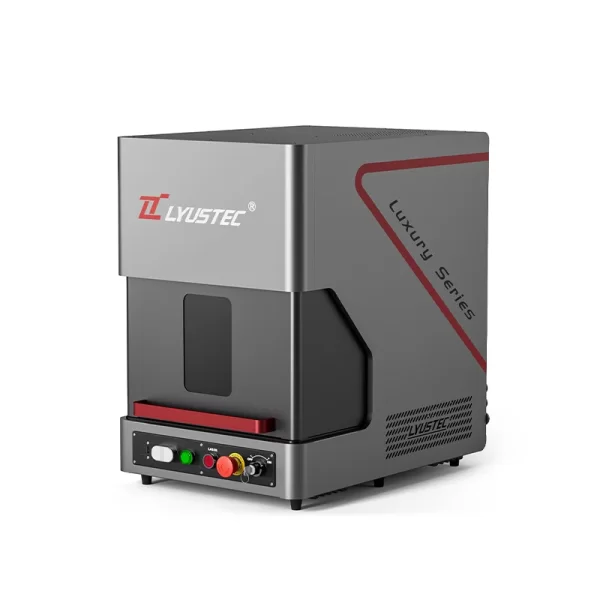

Desktop Fiber Laser Marker
Brand Name：
LYUSTEC
Product Model:
FastMarker F2100D/F3100D/F3160D/F5100D/F5160D/F5200D/F5200D
Professional custom Lifelong maintenance
One year warranty Free proofing
- Description
- Featured
- Application
- Video
- Technical data
- Download
- Inquiry
Description
Introduction
The FastMarker F-D is a desktop model series, that has been designed for the high-quality laser marking of small parts, medium-sized components and workpieces and batches. This series is ideally suited for laser marking auto parts, electronic components, medical products, instruments, tools, metal and plastic components and general industrial products and components. The FastMarker F-D series processes small metallic and plastic components but also batches both economically and in high marking quality.
The desktop laser marker is also ideally suited for manufacturers with low volume requirements or where space constraints demand an efficient solution. Optional for different marking areas and laser power, meet different process requirements. The machine can also be cart-mounted for mobility throughout a user’s facility.
Supply (Depends on work space and laser system)
Power Consumption ：Depends on integrated laser system above listed fiber lasers: 400 VAC
Electrical Requirements ：L / N / PE 100 – 240 VAC, 50 / 60 Hz
Temperature： 50 – 104ºF | 10 – 40ºC
Humidity： 5 – 85 %, non-condensing
Dimensions
Footprint：697.5 in | 0.217 m²
(L × W × H)：18.11 in ×27.36 in× 26.77 in | 460mm × 695mm × 680mm
IP Rating:Housing IP43, Supply unit IP21
Laser Class:Laser class 1 (according to DIN EN 60825-1)
Scope of delivery
Integrated Z-axis
Configurable laser system
Laser marking software MacMark
Axes programmable z-axis
Travel：9.4 in | 240 mm
Travel Speed：up to 0.13 in / s |3.3 mm / s
Lifting door
Manual opening
Max. doorway 9.05 in (230 mm)
User interfaces
- Laser marking software MacMark (on separate, internal)
- Operation via a monitor with keyboard and mouse / touch screen monitor
- USB interface
Advantage
Design
Independent patent design industrial desktop workstation with automatic Z axis for a flexible and movable use.
Safety
Fully equipped Germany Siemens electrical system, machine complies with EU safety regulations (performance level D)
Flexibility
Small and compact, with automatic Z axis and 3 sides door free space, marking of a large variety of parts from small to big parts, from simple to complex shapes.
Ergonomics
Wide and easily opening door for comfortable loading components, small space occupation, air-cooled laser source, height adjustable worktable and rotary clamps.
Performance
Equipped with high quality fiber lasers with strong beam quality and high efficiency galvo head with dual red light positioning system, fast focus and precise positioning, improve accuracy and speed at work.
Reliability
Wide and easily opening door for comfortable loading components, small space occupation, air-cooled laser source, height adjustable worktable and rotary clamps.
Applicable Material
Desktop laser marker is suitable to all kinds of metal and partial nonmetallic material, High hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.
Applicable Industry
Widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools,sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.

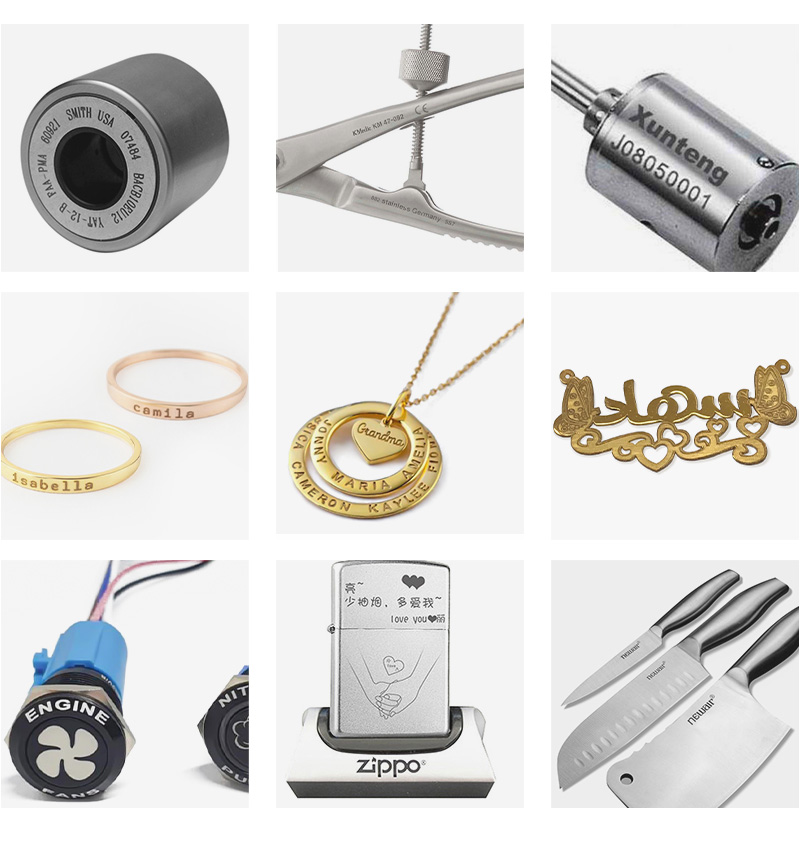

Sample Display
Please watch the video
| Model | FASTMARKER F2100D | FASTMARKER F3100D | FASTMARKER F5100D |
|---|---|---|---|
| Laser Type | Fiber | ||
| Laser Power | 20W | 30W | 50W |
| Wavelength | 1064nm | ||
| Dimensions (L × W × H) | 460 mm (18.11 in) × 695 mm (27.36 in) × 680 mm (26.77 in) | ||
| Frequency | Up to 10 – 80 Khz | ||
| Marking Speed | Up to 10000 mm / s (393,7 in / s) | ||
| Z Axis Type | Motorized | ||
| Operating Temperature | 10-40ºC | ||
| Marking Area – Available Lenses |
Standard: F100: 70 mm (2.75 in) ×70 mm (2.75 in) |
||
|
Optional: F160: 110 mm (4.33 in) × 110 mm (4.33 in) F254: 175 mm (6.89 in) × 175 mm (6.89 in) |
|||
| Z Axis Travel | 238mm (9.37 in) | ||
| Door Type | Manual | ||
| Communication Interfaces |
4 x USB; Terminal Block 2I / 3O; (Standard) |
||
| Laser Safety Classification | Class 1 Door Closed / Class 2M Door Open (Aiming Diode) | ||
| Power Consumption Rate | < 800W | ||
| Machine Net Weight | 70Kg (154.323 lbs) | ||
| Software | MacMark | ||
| Rated Voltage | 100 – 240 VAC, 50/60 Hz | ||
