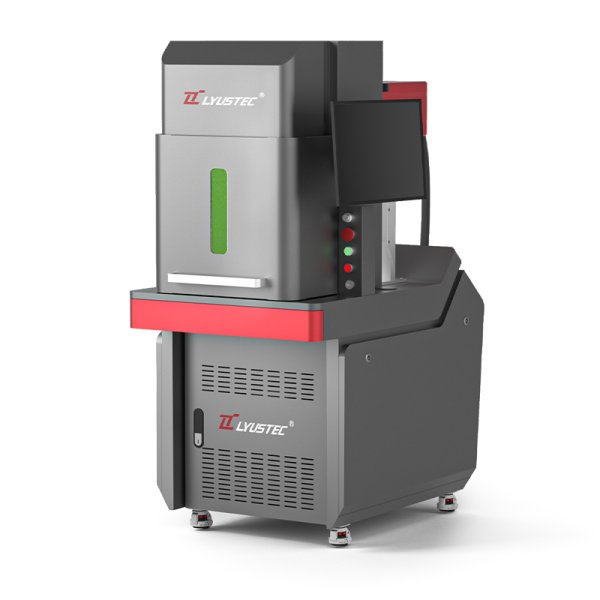

Station Co2 Laser Marker
Brand Name：
LYUSTEC
Product Model:
FastMarker C1070/C3100/C6100/C6160
Professional custom Lifelong maintenance
One year warranty Free proofing
- Description
- Featured
- Application
- Video
- Technical data
- Download
- Inquiry
Description
Introduction
The FastMarker C series adopts the industrial standardization module design. This series is fitted with the full set of imported metal sealed radiation frequency Co2 laser, and equipped with high-speed scanning galvanometer, extending focusing system and motorized z-axis.
The station co2 laser marker also has high stability and an anti-intervention industrial computer system as well as a high precise lifting platform. It can work for a continuous 24 working hours in high stability, high precision, and high speed. Unlike conventional marking methods like inkjet or label, the integrated laser marker can operate without contact and has low maintenance.
Mactron offers tailored solutions to match dedicated laser marking applications and machine setups perfectly. we provide precision marking and operational simplicity in a compact and easy-to-use platform. station co2 laser marker always includes a motorized z-axis for easy focusing as well as a range of optional motion axes and laser types.
Supply (Depends on workspace and laser system)
Power Consumption: Depends on integrated laser system
Electrical Requirements: L / N / PE 100 – 240 VAC, 50 / 60 Hz
Temperature: 41 – 95ºF | 5 – 35ºC
Humidity: 10 – 90 %, non-condensing
Workstation
Work Space : 19.18 ×17.25 in | 488 × 439 mm
Max. Work Piece Weight: up to 55 lbs | 25 kg
Max. Work Piece Size: 19.18 × 17.25 × 11.28 in | 488 × 439 × 287 mm (W× D × H)
Dimensions
Footprint: 1395.00 in² | 0.90 m²
Weight: Marking unit (laser) approx. 55.12 lbs (25 kg)
(W × D × H): 35.21in×26.53in×58.67in | 896mm×675mm×1493mm
IP Rating: Housing IP43, Supply unit IP21
Laser Class: Laser class 1 (according to DIN EN 60825-1)
User interfaces
- Laser marking software MacMark (on separate, internal)
- Operation via a monitor with keyboard and mouse/touch screen monitor
- USB interface
Scope of delivery
Integrated Z-axis
Configurable laser system
Laser marking software MacMark
Axes programmable z-axis
Travel：12.77 in | 325 mm
Travel Speed: up to 0.24 in / s | 6 mm / s
Lifting door
Manual opening
Max. doorway 16.11 in (410 mm)
Advantage
Industrial Design
Independent design patent industrial-grade workstation with motorized Z axis and safety cover. Suitable for harsh environments where dust and humidity are a challenge and where the system is regularly washed down.
Reliability
Air-cooled laser virtually eliminates maintenance; High-resolution marking head for high quality, permanent and consistently crisp codes that assure product traceability and tamper-proofing.
Safety
Fully equipped Germany Siemens electrical system, machine complies with EU safety regulations (performance level D).
Multi Marking Possibilities
Mostly marking on nonmetal material, such as organic materials: paper, cardboard, wood, leather, and engraving on transparent plastics. As well as on electrical industry, plastic processing and fruits and vegetables industry.
Virtually No Consumables
CO2 lasers significantly reduce the processing cost save exchange consumable time, improve efficiency.
Less Maintenance
CO2 lasers are virtually maintenance-free, leading to enhanced ease of operation.
Options / Accessories
CCD laser system
Rotary device
Exhaust system
Accuracy package
Applicable Material
Station co2 laser marking machines are incredibly versatile and can mark a wide array of materials and products with high precision and detail. They can engrave on natural materials such as wood, leather, and textiles, as well as synthetic materials like plastics, including acrylic, polycarbonate, polyethylene, polypropylene, and ABS. Additionally, these machines can mark on glass, ceramics, rubber, paper, and cardboard.
| Laser Type | CO2 | ||
| Laser Power | 10W | 30W | 60W |
| Wavelength | 10640nm | ||
| Dimensions(LxWxH) | 650 mm (25.590 in)×700 mm (27.559 in)×1450 mm (57.086 in) | ||
| Frequency | Up to 10-80 Khz | ||
| Marking Speed | Up to 10000 mm / s (393,7 in / s) | ||
| Z Axis Type | Motorized & Programmable | ||
| Operating Temperature | 10 – 40 ℃ | ||
| Marking Area – Available Lenses | F160: 110mm (4.33 in) × 110mm (4.33 in) Optional: F100: 70mm (2.56 in) × 70mm (2.56 in) F254: 175mm (6.89 in) × 175mm (6.89 in) F330: 200mm(7.87 in) × 200mm(7.87 in) F420: 300mm(11.81 in) × 300mm(11.81in) |
||
| Z Axis Travel | 325mm (12.795 in) | ||
| Door Type | Manual / Motorized (optional) | ||
| Communication Interfaces | 4×USB; Terminal Block 2I / 3O; (Standard) Laser Safety Dedicated I / O; RS232; Ethernet TCP / IP |
||
| Laser Safety Classification | Class 1 Door Closed / Class 2M Door Open (Aiming Diode) | ||
| Power consumption rate | < 800W | ||
| Machine Net Weight | 100Kg (220.462 lbs) | ||
| Software | MacMark | ||
| Humidity Level | 10 – 85% | ||
| Electrical Requirements | L/N/PE 100 – 240 VAC, 50/60 Hz | ||
