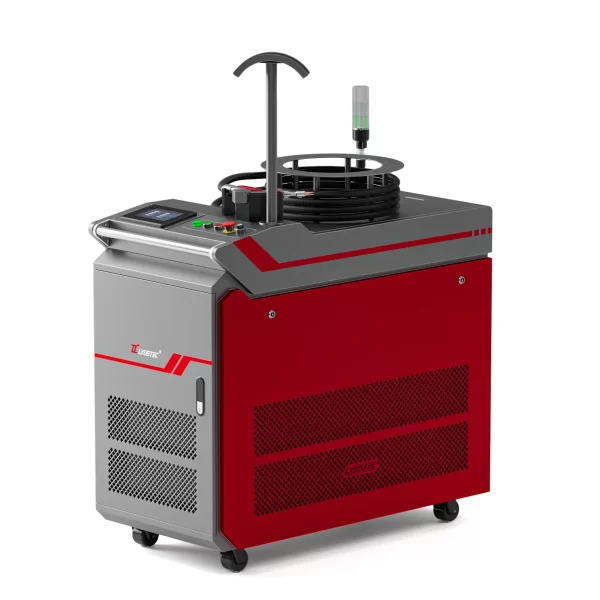

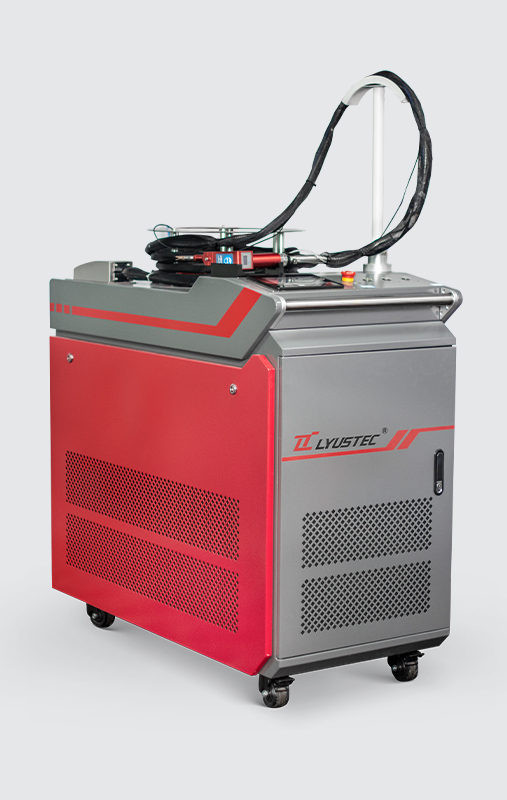

Handheld Laser Welder
Brand Name：
LYUSTEC
Product Model:
FastWelder W1000FH/W1500FHD/W2000FH/W3000FH
Professional custom Lifelong maintenance
One year warranty Free proofing
- Description
- Features
- Application
- Video
- Technical data
- Download
- Inquiry
Description
Introduction
Handheld laser welder adopts continuous fiber laser source, and is equipped with self-developed hand-held welding head. In terms of shape, structure and human-machine interface, it is optimized based on humanization and work effectiveness. The hand-held welding joint can be customized according to actual production, which is not often used in non-standard production. It adopts water cooled design, long-time welding without burning, small diameter and hand-held easily. It has the advantages of simple operation, beautiful welding effect, fast welding speed and no consumables.
SIEMENS Electronic System
Durable and Contact
Self-Developed MACWELD Operating Software
Full touch operation display Unique and powerful
Built-in Constant Industrial Water Chiller
Intelligent control, superior performance and environmentally friendly
Brand Laser Source
Good beam quality, High energy density, High electro-optical efficiency
Human Design Handle
Reasonable design, Comfortable grip, Easy to move
Universal Pulley
Strong bearing capacity, universal movement, quiet and wear-resistant
10 Meters Optical Fiber Cable
Suitable for long-distance welding
Options / Accessories

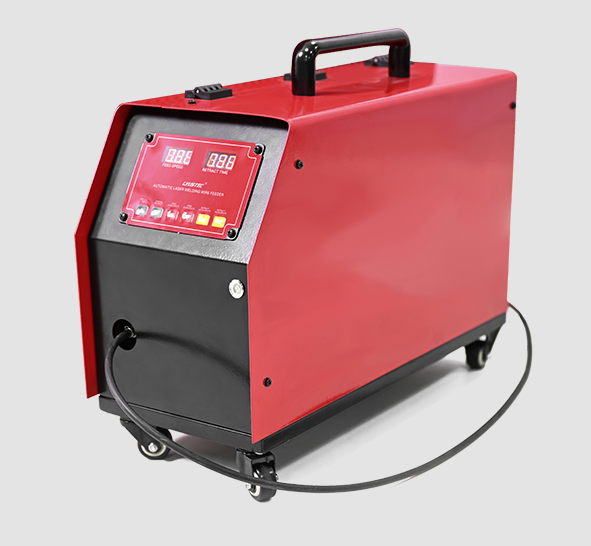

New Generation Automatic Laser Welding Wire Feeder
Automatic retract , speed up to 6 m/min, suitable for large welding seam processing

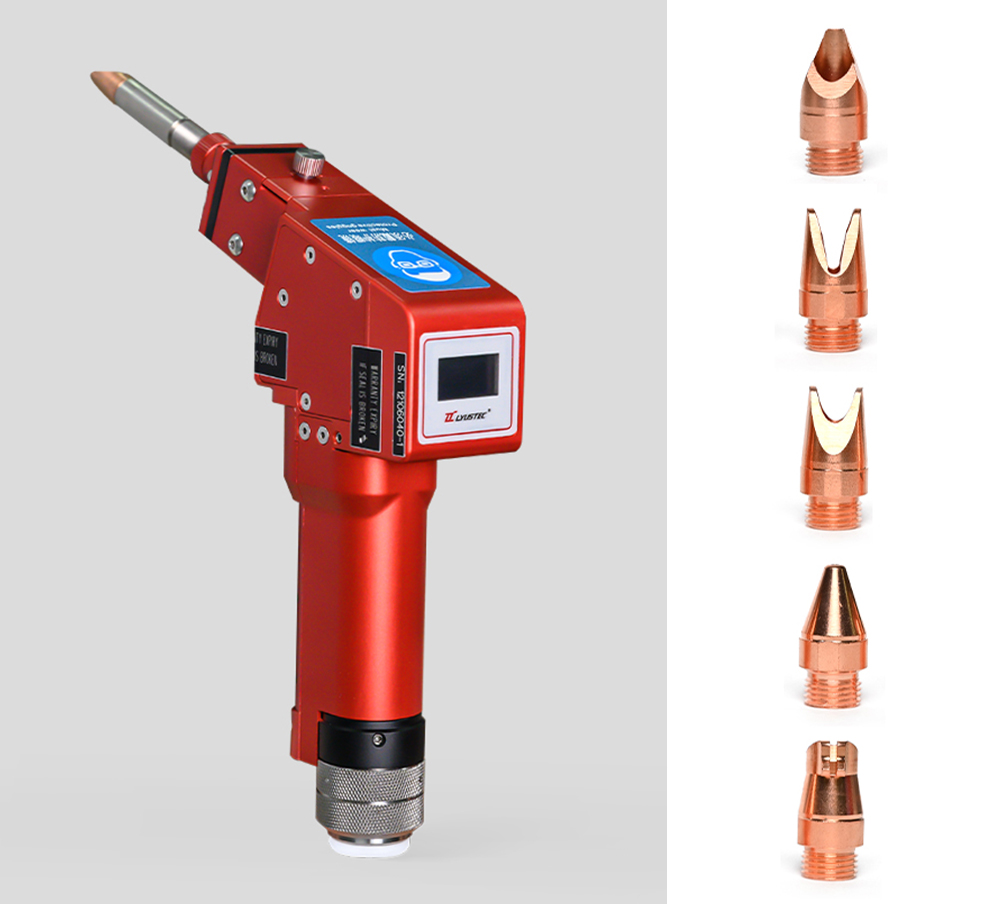

Double Wobble Head
Flexible and applicable, only weight 0.88KG (without QBH connector )
Various Copper Nozzle
Meet different welding needs

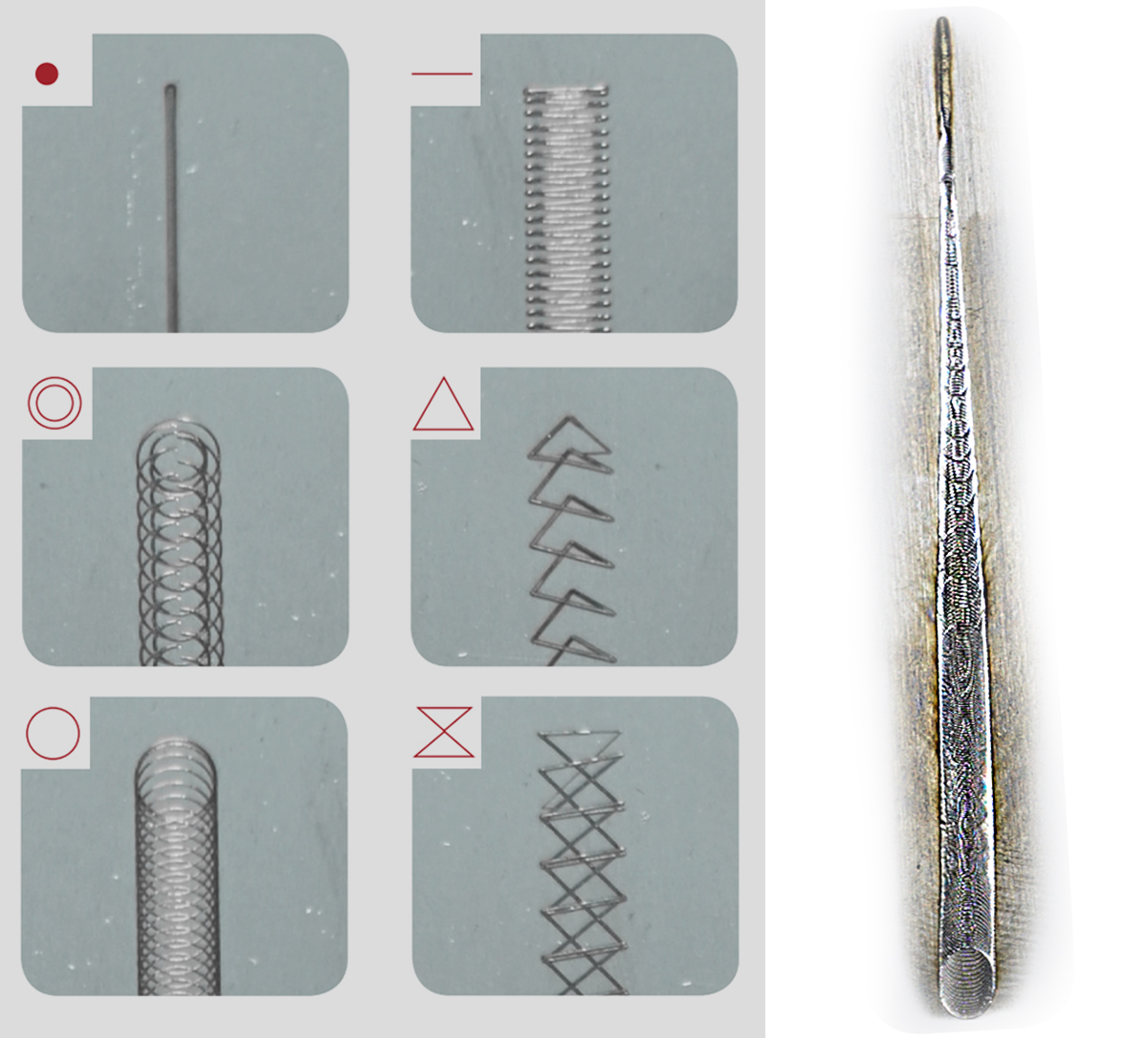

Six spot mode， Exquisite welds
Built-in Wobble Welding
Wobble width up to 5mm
Handheld laser welder vs Traditional welding machine
| Type
|
FastWelder W-FH | Traditional Welder (MIG, TIG) |
|---|---|---|
| Speed
|
Up to 2-10 X | Average |
| Weld Types
|
> 6 Types (Including Fish Scale Patterns, etc.) | Single |
| Welding Heat Quality
|
Consistent High-Quality Results | Depends on User Experience |
| Learning Curve
|
Quick and Easy | Steep |
| Material Flexibility
|
Wide Range with No Set Up | Limited with Consumables Changes |
| Distortion & Deformation
|
Very Low | High |
| Heat Affected Zone
|
Small or None | Large with Burning Color |
| Wobble Welding
|
Yes – Additional Weld Width Up to 5mm(0.197 in) | No |
| Consumables
|
High with Professional Welder | Welding Rod |
| Environmental Pollution
|
Small | Large |

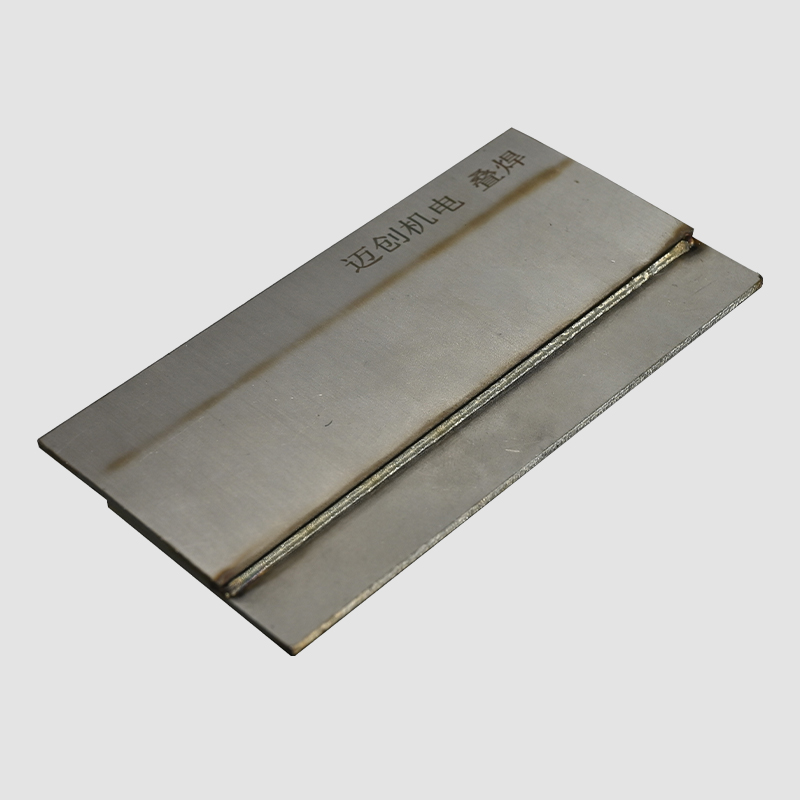

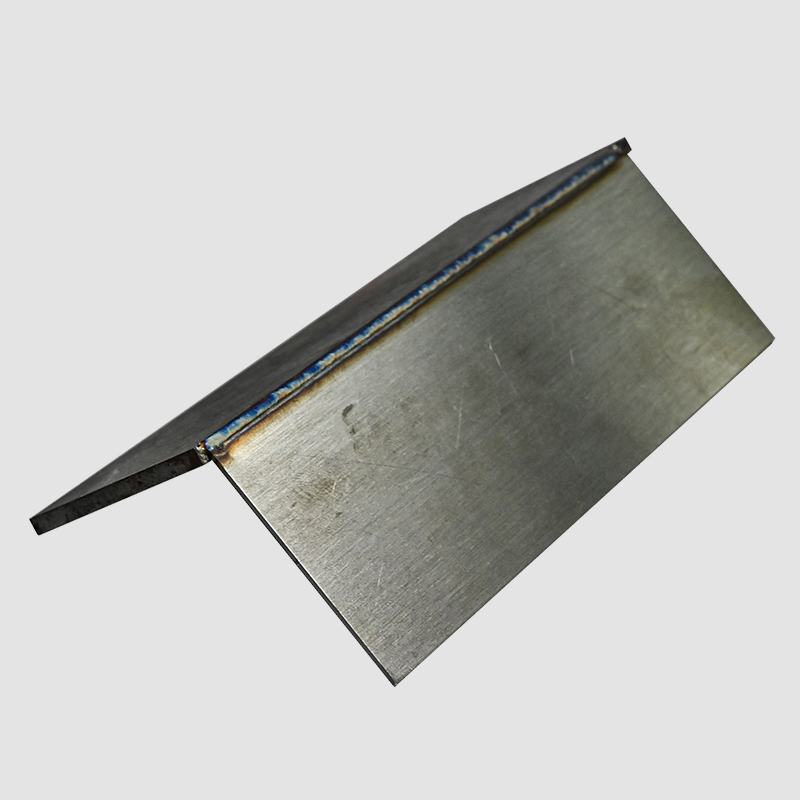

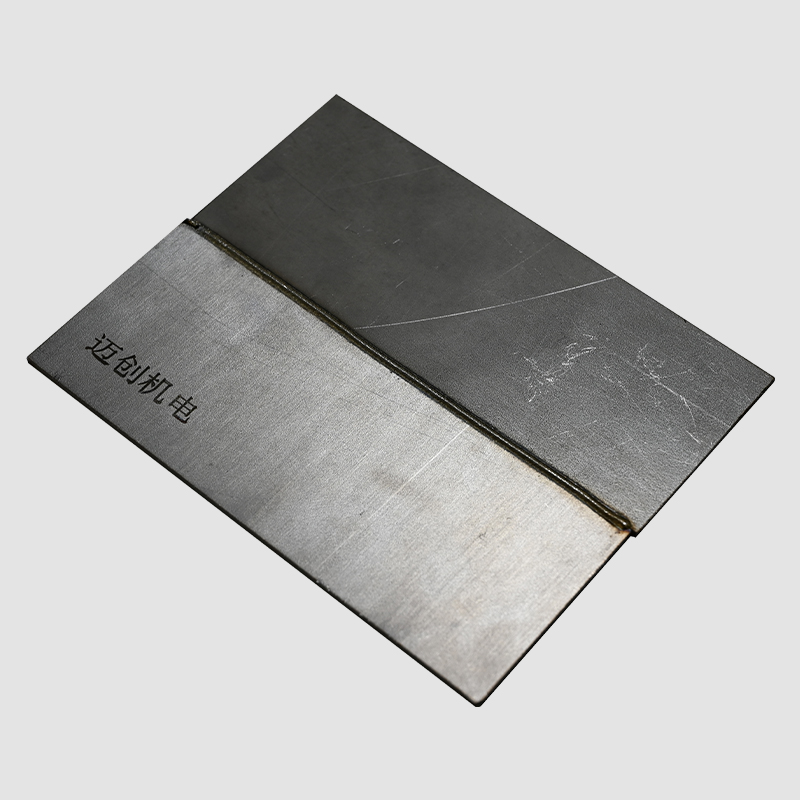

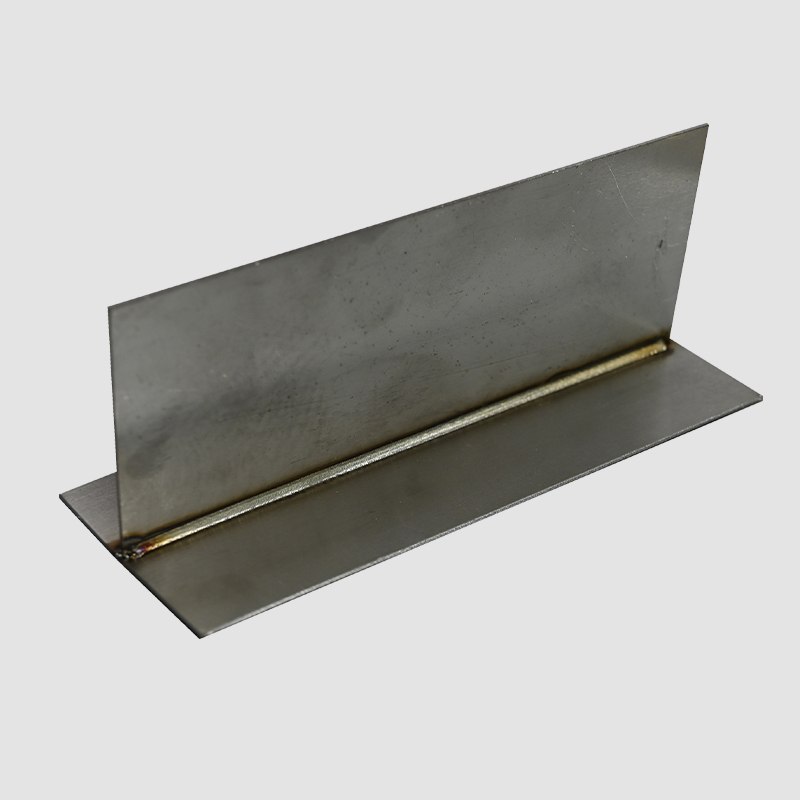

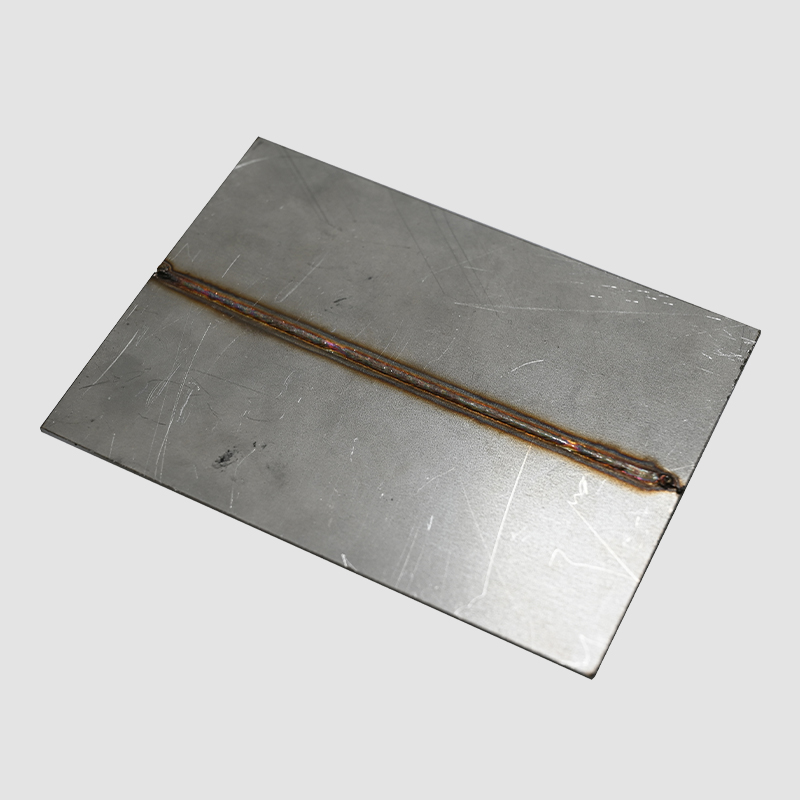

Welding Type
Application Industry
Handheld laser welding machine is easy to handle Thick Metal / Thin Metal / High Reflection Metal, including galvanized sheet, aluminum, alloy, stainless steel and other materials It is mostly suitable for Metalfabrication shops, Construction and piping, Maintenance and repair, Automotive, Advertising, Farm, Furniture&appliances, Medical instruments, Aerospace & transportation.

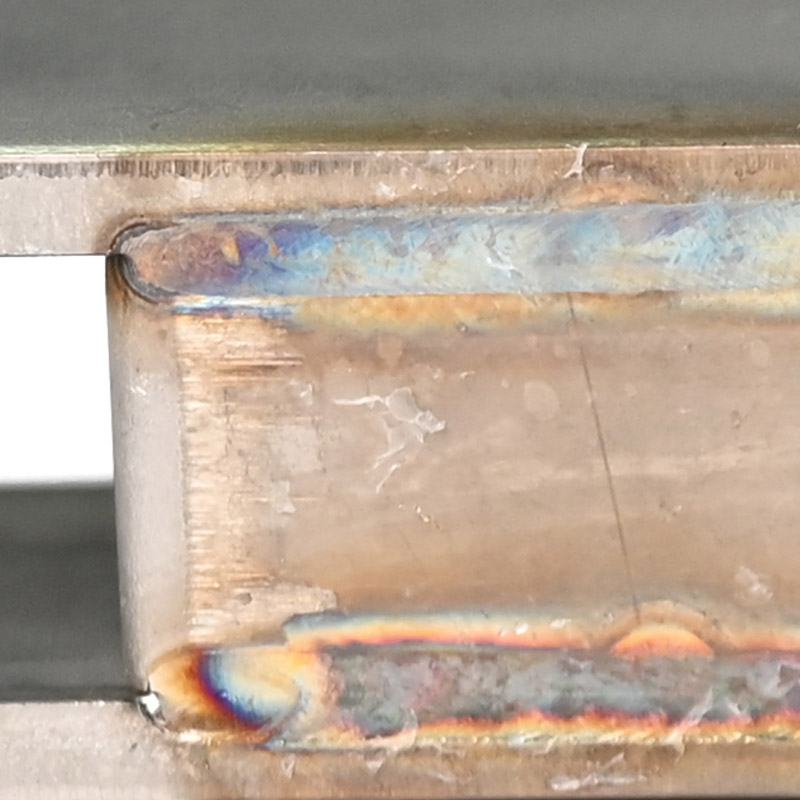

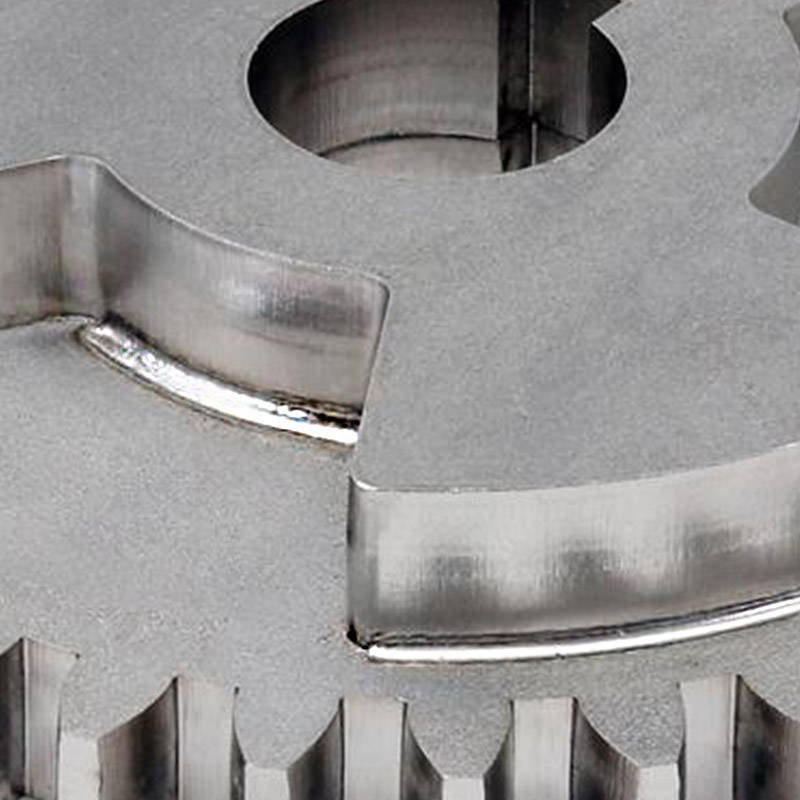

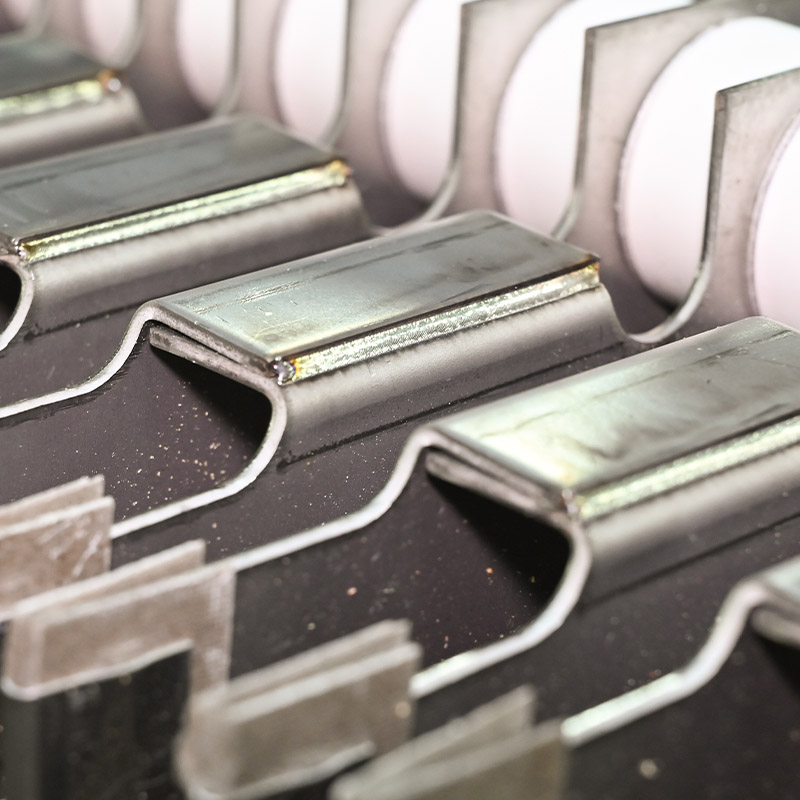

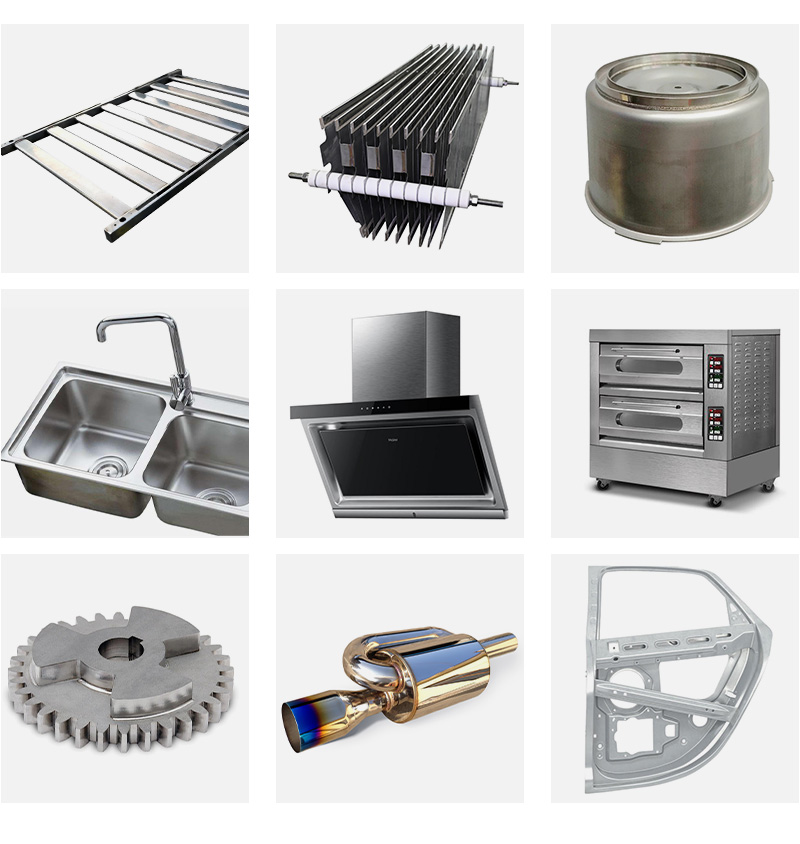

Sample Display
Material Range
| Material | Thickness Single-side Weld | Thickness Double-side Weld | ||
| Stainless Steel | Up to 5mm(0.197 in) | Up to 15mm(0.590 in) | ||
| Galvanized Steel | Up to 5mm(0.197 in) | Up to 15mm(0.590 in) | ||
| Mild Steel | Up to 5mm(0.197 in) | Up to 15mm(0.590 in） | ||
| Aluminum | Up to 4mm(0.157 in) | Up to 8mm(0.315 in) | ||
Please watch the video of handheld laser welder
| Model | FastWelder-W1000FH | FastWelder-W1500FH | FastWelder-W2000FH |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Type | Fiber | ||
| Wavelength | 1070nm | ||
| Voltage | 220V±10% / 50Hz / 30A | 220V±10% / 50Hz / 30A 380V±10% / 50Hz / 40A |
380V±10% / 50Hz / 40A |
| Gross Power | <8KW | ||
| Welding Thickness | < 8mm (0.315 in) | ||
| Welding Gap Requirements | ≤0.5mm(0.019 in) | ||
| Welding Speed | 0~120 mm/s(0 – 4.724 in/s) | ||
| Welding Head Configuration |
Wobble Welding Head
|
||
| Laser Operation | Continuous/Modulation | ||
| Beam Divergence Angle | ≤1.2mrad/m | ||
| Welding Joint Interface | QBH | ||
| Fiber Wire Length | 10m (39.370 in) | ||
| Spot Dia | 0.2-2mm Adjustable | ||
| Positioning | Red Pointer | ||
| Cooling System | Water Cooled – Inner Industrial Chiller | ||
| Process Gas | Argon, Helium, Argon + CO2 Mix Pressure Approx. 620 kPa, (90 psi) |
||
| Dimensions (L × W × H) | 1200mm (47.244 in) × 600mm (23.622 in) × 1100mm (43.307in) | ||
| Weight | 245Kgs (540 lbs) | ||
| Work Environment | 15~35 ℃ | ||
