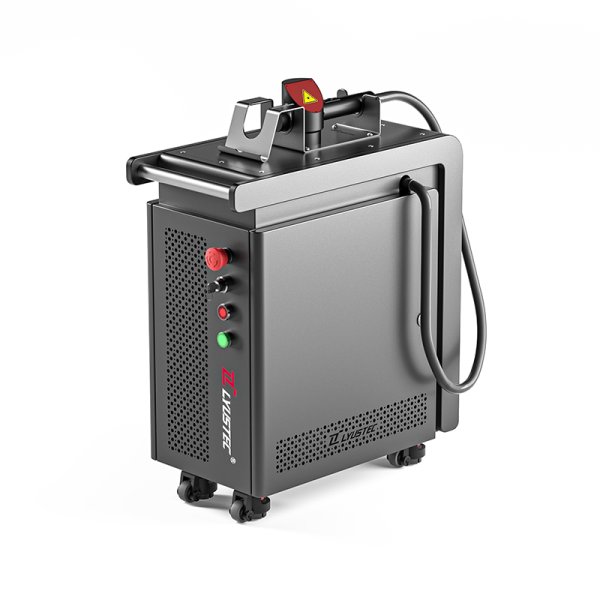

Handheld Laser Cleaner

Brand Name：
LYUSTEC
Product Model:
FastCleaner CL200/CL300

Professional custom    Lifelong maintenance

One year warranty       Free proofing

Categories: ,

Description

Laser cleaning machine is a new non-contact surface cleaning technology that uses a low-power, high-energy-density pulsed laser beam to act on the surface of the workpiece, causing the surface of the stain, oxide or coating to evaporate or thermally expand. In order to achieve the effect of surface cleaning and purification. Compared with the traditional method, Laser Cleaner has the advantages of environmental protection, no grinding, no heat effect, and has unique advantages in cleaning precision workpieces.

• Non-contact cleaning, no chemical agent, no damage to the part base.
• Environmentally friendly and no consumables.
• Precise positioning for precise cleaning and precise size.
• Simple operation, power-on operation, automatic cleaning with hand or robot.
• Efficient and stable, high cleaning effect, low maintenance cost.



Advantage

Environmental Protection
No chemical reagents, no solvents, less noise.

Convenient Operation
Non-contact processing, portable and movable.

No Damage
Only remove surface contaminant.

Repeatable and Easily Automated
Easy to integrate with automated production line.

Selective Operation
Spot cleaning in local area.

Easily Maintenance
No wearing parts in the equipment.

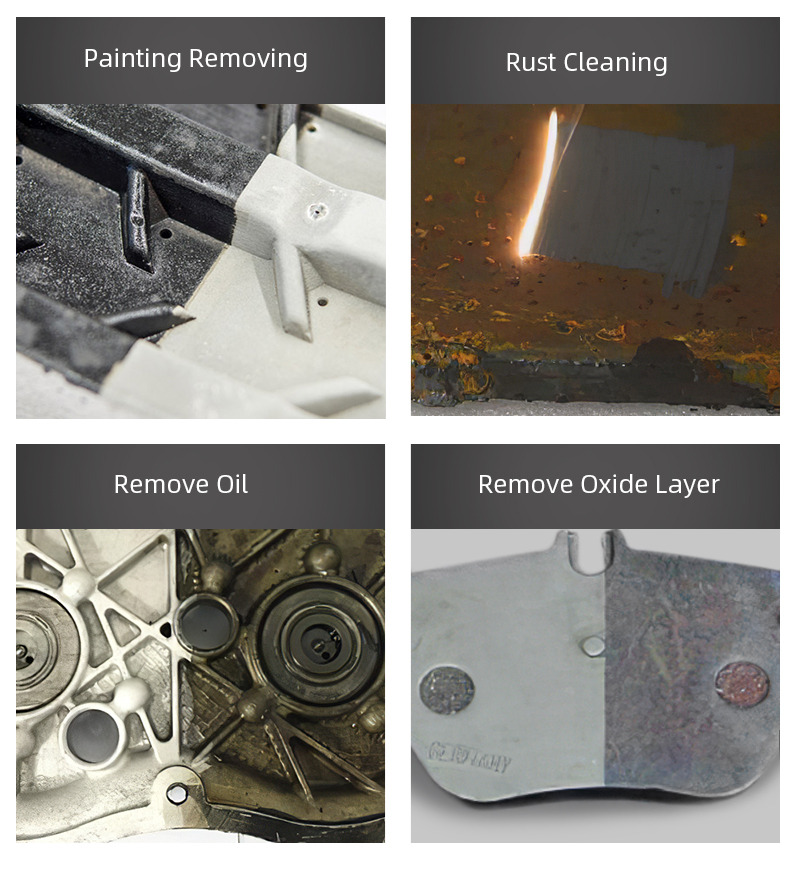

Handheld laser cleaner has a wide range of applications and strong pertinence. It is suitable for metal mold rust removal, paint peeling or removal of the wrapper, pretreatment of parts before coating, as well as cleaning of aviation parts, restoration and protection of historical relics, etc. It can play an important role in automobile manufacturing, semiconductor chip manufacturing, precision parts manufacturing, military equipment, aerospace, building exterior walls, cultural relics protection, circuit boards and other fields. Derusting and decontamination operations can be performed on cast iron, carbon steel plates, stainless steel plates, mold steel gears, aluminum plates or paint layers, so that the surface is clean and smooth without damaging the base material.

Model MT-CL100 MT-CL200 MT-CL300
Laser type Nano. pulsed fiber laser
Wavelength 1064nm(Spectral width @3dB<15)
Laser Power 100W 200W 300W
Pulse energy 2mJ 1.5mJ / 5mJ 5mJ / 12.5mJ
Frequency Range 1-4000KHz
Pulse Width 2-500ns
Beam Quality <2㎡(3100in²) <5㎡(7750in²)
Head Weight <1.2Kg(2.65lbs)(No QBH/QCS  )
Cleaning Width Single wobble：0~120mm (0-4.72in)（Adjustable）
Double wobble： >100mm (3.94in)(Six modes）
Scanning Speed <20m/s(787.40 in/s)
Wire Length 5m(196.85in)
Cooling Air cooling
Voltage AC 110/220V, 50/60Hz, 20A
